61 31 008 Removing and installing (replacing) steering column switch cluster

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Attention !

Move wheels into straight-ahead position and do not alter this position during the repair work.

Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.

Necessary preliminary tasks:

Remove STEERING WHEEL
Remove THE TOP SECTION OF STEERING COLUMN CASING
Remove STEERING COLUMN SHROUD LOWER SECTION

Removal:

Release screws (1).

Remove steering column switch cluster (2) in direction of arrow.

Fig 1: Removing Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) on steering column switch cluster (2).

Fig 2: Steering Column Switch Cluster Connector Location

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (1) to steering column switch cluster (2).

Fig 3: Steering Column Switch Cluster Connector Location

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check neutral position of clock spring on steering column switch cluster.
Neutral position is correct only when the green or yellow mark (1) is clearly visible!

Fig 4: Steering Column Switch Cluster Neutral Position Location

Courtesy of BMW OF NORTH AMERICA, INC.

Install steering column switch cluster in direction of arrow.

Retain steering column switch cluster pressed firmly against the steering column.

Tighten screws (1 to 4) in the order displayed.

Tightening torque 61 31 3AZ .

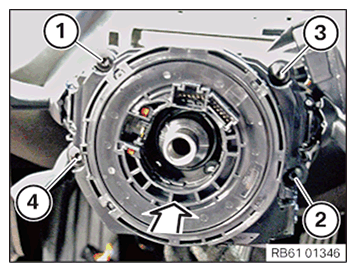

Fig 5: Installing Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
