61 13... Crimping stop parts: Overview

Special tools required:

• 12 1 080
• 12 1 081
• 12 1 083

1. Crimp the impact connectors and contact sleeves for comb connectors from 2.5 mm 2
2. Crimp the impact connectors and contact sleeves for comb connectors from 2.5 mm 2
3. Crimping contact sleeves for 4 mm2 comb connectors and ignition cable contacts

   Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm2 contact sleeves for comb connectors.

   • 12 1 081 (hand pliers)
   • 12 1 083 (nest)
   Fig 1: Hand Pliers (12 1 081) And Nest (12 1 083)
   Courtesy of BMW OF NORTH AMERICA, INC.

   See repair instructions:

   SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

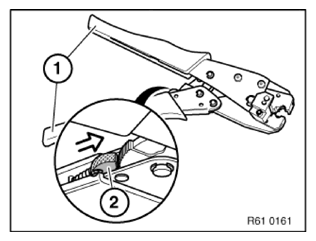

   Release special tool 12 1 081 :

   Squeeze grips (1) lightly and push release lever (2) in arrow direction.

   Or:

   Compress handles up to stop, and hand pliers unlock automatically.

   Fig 2: Pushing Release Lever

   Courtesy of BMW OF NORTH AMERICA, INC.

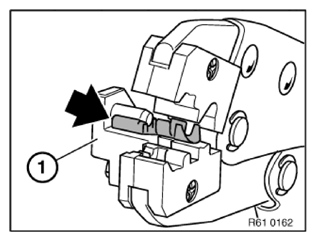

   Place 4 mm2 contact sleeve in nest with anti-twist safeguard (1) as far as possible.

   Fig 3: Locating Nest Contact Sleeve With Anti-Twist Safeguard

   Courtesy of BMW OF NORTH AMERICA, INC.

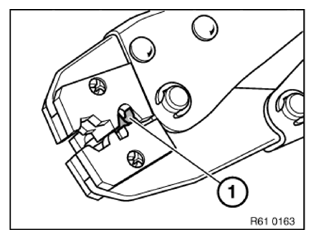

   Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

   Fig 4: Locating Grip Contact And Crimping Tool

   Courtesy of BMW OF NORTH AMERICA, INC.
   NOTE: Follow procedure for CUTTING OFF AND STRIPPING INSULATION FROM CABLES .

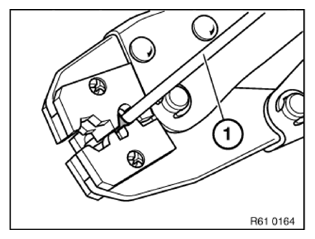

   Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

   Fig 5: Inserting Stripped End Of Wire In Contact

   Courtesy of BMW OF NORTH AMERICA, INC.

   Compress crimping tool up to stop.

   Crimping tool unlocks automatically.

   Take contact out of crimping tool.

4. Checking crimping

Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

Fig 6: Locating Insulation Crimping And Wire Crimp

Courtesy of BMW OF NORTH AMERICA, INC.

Correct crimping:

Visible conductor end (10).

Visible insulation end (11).

Fig 7: Conductor End (Correct Crimping)

Courtesy of BMW OF NORTH AMERICA, INC.

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

Fig 8: Conductor End (Incorrect Crimping)

Courtesy of BMW OF NORTH AMERICA, INC.

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.

Fig 9: Conductor End And Insulation End (Incorrect Crimping)

Courtesy of BMW OF NORTH AMERICA, INC.
