61 14... Removing and installing power distribution box (front)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Preliminary work needed:

Remove TRIM FOR DASHBOARD AT BOTTOM RIGHT
Remove RIGHT GLOVE COMPARTMENT WITH HOUSING

Removal:

Remove screw (1).

Feed out power distribution box (2) from support (3).

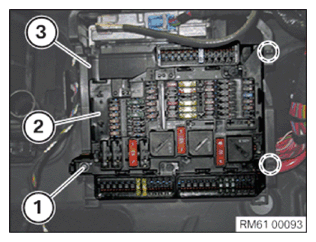

Fig 1: Locating Power Distribution Box And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in power distribution box (2) into support (3).

Tighten screw (1).

Tightening torque 61 14 3AZ .

Fig 2: Locating Power Distribution Box And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
