51 45... Removing and installing/replacing side panel on dashboard on left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

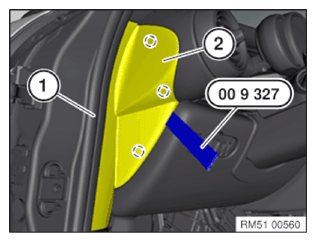

Detach edge protection (1) in area of side cover (2).

Unclip side panel (2) with the special tool 00 9 327 .

If necessary, unlock associated plug connection and disconnect.

Feed out side panel (2) and remove.

Fig 1: Removing Side Panel With Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

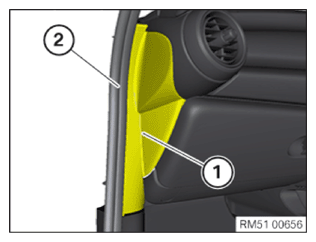

Mount side panel (1).

Make sure that it is seated correctly on edge protection (2).

Fig 2: Mounting Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
