REP-TAT-P-6422-02 Installing the center right air vent
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Position air vent (2) on support (3).
- Replace screws (1).
Parts: Screws
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Air vent to support/support to instrument panel |
| Screw |
| Tightening torque |
| 1.8 Nm |

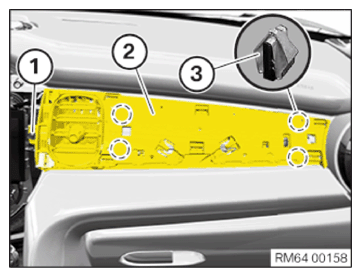

- Install support (2) and clip it into detents (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Air vent to support/support to instrument panel |
| Screw |
| Tightening torque |
| 1.8 Nm |
Follow-up work
- Install the DECORATIVE STRIP on the passenger's side
- Install CENTRAL INSTRUMENT
- Install the ring trim
