Removing and installing (replacing) right decorative strip on dashboard (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Scratches.
Tools and sharp-edged components can cause scratches.

Protect working area.
Handle tools and components carefully.

The following repair instructions describe the repair work on vehicles without a storage compartment.

For vehicles with a storage compartment, remove/replace right decorative strip on STORAGE COMPARTMENT .

Preliminary work needed:

Remove center right FRESH AIR GRILLE .

Removal :

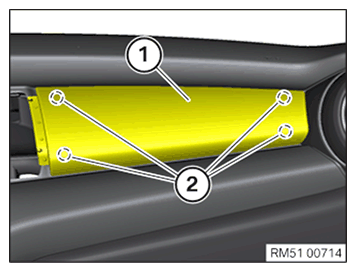

Unclip and remove decorative strip (1) carefully on the attachment points (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in decorative strip (1) on the attachment points (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install center right FRESH AIR GRILLE .
