Removing and installing/replacing sensor for automatic air recirculation control

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove right WINDSHIELD PANEL COVER .

Removal:

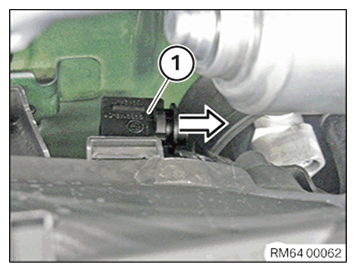

Disengage sensor (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

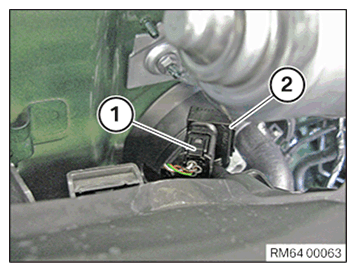

Unfasten plug connection (1) and disconnect.

Remove sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join plug connection (1) to sensor (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Shift sensor (1) in arrow direction shift until sensor (1) is locked.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install right WINDSHIELD PANEL COVER .
