Mounting engine on assembly jig (B36 engine) (Cooper base)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 300
00 2 320
2 288 357
11 9 030
11 0 070

IMPORTANT: Follow manufacturer's instructions.

Preliminary work needed:

Remove ENGINE with transmission
Remove transmission.
- Vehicles with automatic transmission, refer to REMOVING AND INSTALLING TRANSMISSION (AISIN F21FT)
- Vehicles with manual transmission, refer to REMOVING AND INSTALLING TRANSMISSION (GS6-58BG) .
Drain off MOTOR OIL .

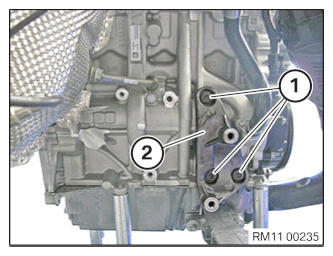

Unscrew the screws (1).

Remove adapter plate (2).

NOTE: Tightening torque: 11 11 5AZ .

G12886509

Courtesy of BMW OF NORTH AMERICA, INC.

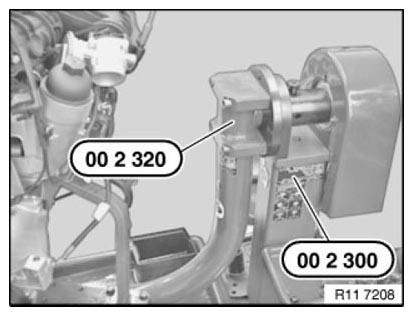

Prepare special tool 00 2 300 together with special tool 00 2 320 (00 2 321).

G09918970

Courtesy of BMW OF NORTH AMERICA, INC.

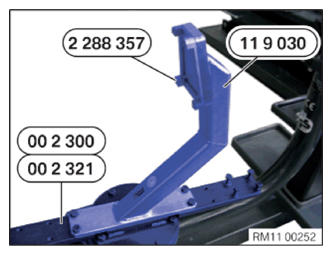

Prepare special tool 2 288 357 together with special tool 11 9 030.

G13794486

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine (1) with workshop crane and special tool 11 0 070 from table lift (83 22 2 184 136).

G11644857

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine with workshop crane onto assembly jig.

G12700670

Courtesy of BMW OF NORTH AMERICA, INC.

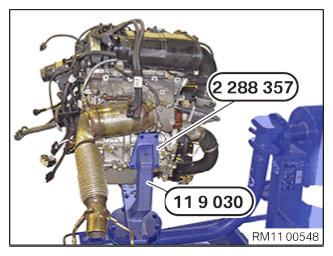

Bolt special tools 11 9 030 and 2 288 357 to engine.

Tightening torque: 11 11 5AZ .

Fix special tool 11 9 030 to assembly jig 00 2 300.

Tightening torque: 11 11 6AZ .

G12886514

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Suspend engine from workshop crane
Remove engine from assembly jig
Use workshop crane to place engine on table lift
Install transmission.
- Vehicles with automatic transmission, refer to REMOVING AND INSTALLING TRANSMISSION (AISIN F21FT)
- Vehicles with manual transmission, refer to REMOVING AND INSTALLING TRANSMISSION (GS6-58BG) .
Install ENGINE with transmission
Top up MOTOR OIL .
