41 34 038 Replacing outer tail panel section: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedure for REPAIR STAGE 2 .

STRIP DOWN VEHICLE .

The following new parts are required:

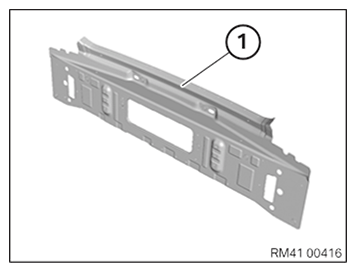

(1) Rear trim panel

Fig 1: Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

The following CONSUMABLES are required:

Material	Quantity
Adhesive K5b	1
Blind rivet N3	18
Punch rivet N4	24
EMC screw	7
Cavity sealing wax remover	1
Cleaning agent R1	1
Sealant D1	1

Removal

Operation described predominantly on the left side. Right side identical.

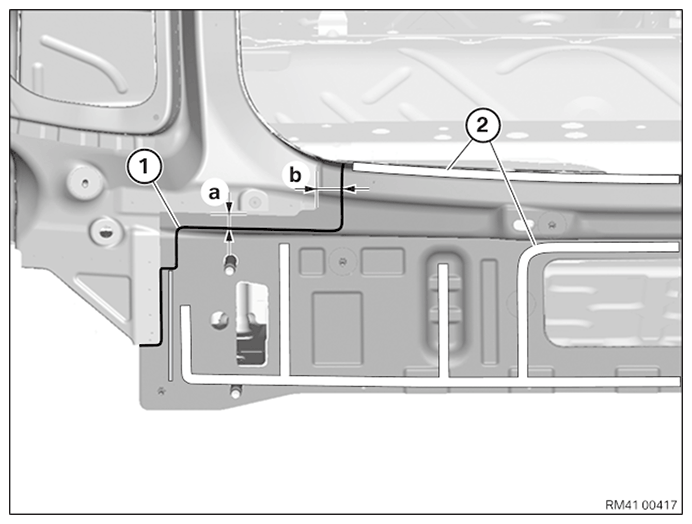

Mark severance cut (1) in accordance with specified measurements and cut.

Attention!

Cut outer metal panel only.

Dimension "a" = approx. 15 mm from component edge, side panel.

Dimension "b" = approx. 20 mm from component edge, side panel.

Open WELDED CONNECTIONS in areas (2) and remove rear trim panel.

Fig 2: Severance Cut Mark And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

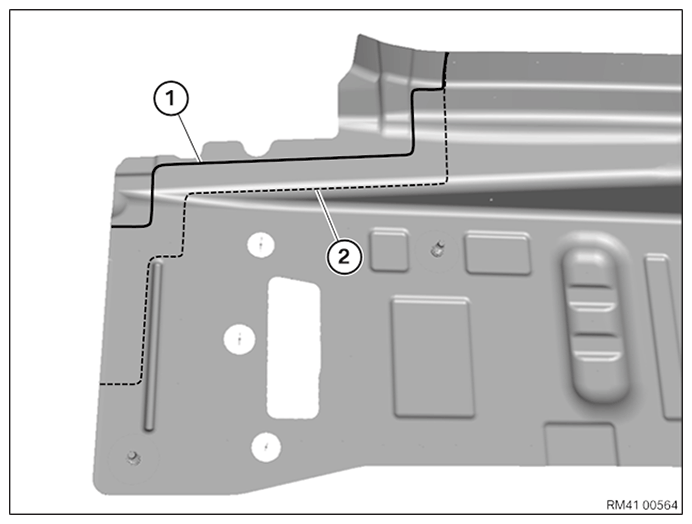

Cut and sever the severance cut (1) on the new part according to the severance cut on the vehicle + 15 mm added material.

(2) = Severance cut route on vehicle.

Fig 3: Severance Cut Route On Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust rear trim panel to fit and secure.

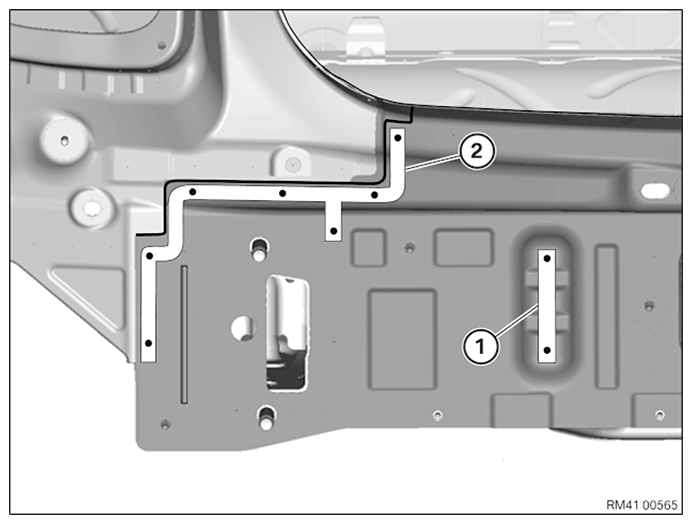

Drill bore holes 4.2 mm for blind rivet in areas (1) and (2).

Fig 4: Blind Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Area	Number
1	2
2	7

Remove new part again and deburr bore holes.

Attention !

Do not grind new part and body in area of bonding surfaces.

Installation:

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

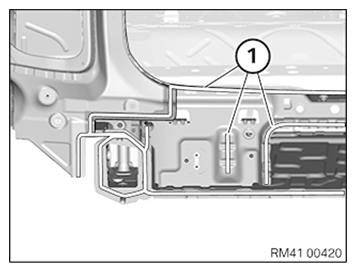

Apply adhesive to bonding surfaces (1).

Install rear trim panel and rivet with blind rivets.

Fig 5: Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the rear trim panel with punch rivets N4 in the areas (1) to (4).

Fig 6: Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Area	Number
1	8
2	7
3	9

Mount support for bumper panel to secure rear trim panel.

Attention !

Prevent emerging adhesive from coming into contact with cross-member!

Do not use any cleaning agents containing solvents.

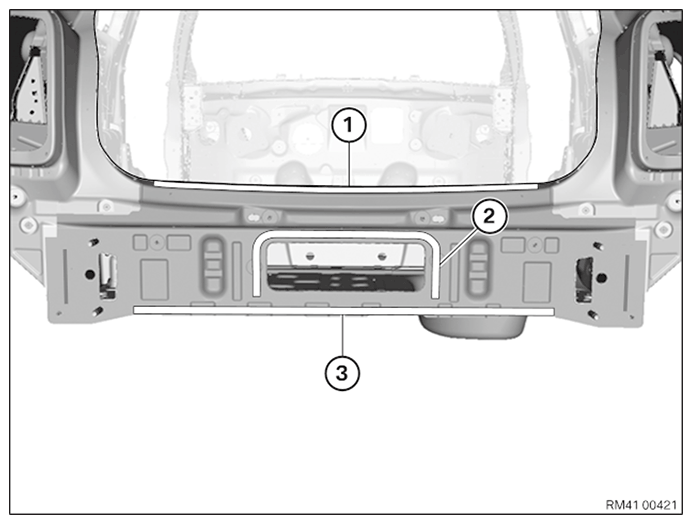

After hardening of the adhesive install 7 EMC SCREWS in the areas shown.

Fig 7: EMC Screws Installation Areas

Courtesy of BMW OF NORTH AMERICA, INC.
