41 61 000 Removing and installing engine compartment lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!

Use suitable tool to support hood in the fully opened position.

Removal of the engine compartment lid must be carried out with the assistance of a second person.

Attention !

These instructions only apply to vehicles without active pedestrian protection !

Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !

Read contents of BODY, GENERAL .

Necessary preliminary work

Disconnect all cable connectors
Release the hose pipe for the window washer system on the coupling

Removal

DISENGAGE gas pressure spring (1) on left and right from engine compartment lid.

Slacken nuts (2) on left and right.

Release nuts (3) on left and right.

Remove engine compartment lid and set down on a suitable surface.

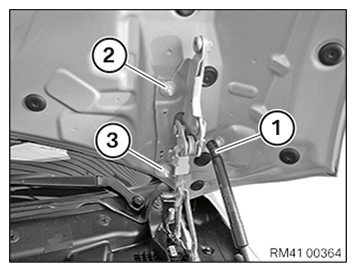

Fig 1: Engine Compartment Lid Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install engine compartment lid with a second person helping. Tighten the nuts (2) and (3) on the left and right.

Tightening torque 41 61 1AZ .

ENGAGE gas pressure spring (1) on left and right on engine compartment lid.

Installation note:

Install engine compartment lid at screw locations to on hinge.

If necessary, adjust ENGINE COMPARTMENT LID .

Fig 2: Engine Compartment Lid Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
