REP-TAT-P-5218-02 Install side airbag on front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Follow-up work
- Install the TRIM at the bottom of the aperture.
- Install the front seat backrest REAR PANEL
- Install trim for BACKREST RELEASE
- Install the front seat OUTER COVER
- Install the SEAT HEIGHT ADJUSTMENT LEVER
- Install the STEERING LEVER for backrest adjustment.
- Install the left or right front seat OUTER COVER for backrest adjustment.
- Install left or right front seat INNER COVER
- Install driver's side FRONT SEAT and/or passenger's side FRONT SEAT
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS on handling components with gas generators.
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS on handling airbag system components/gas generators
- Carefully feed in the side airbag (1) upwards in the cover pocket (2) and correctly position on the backrest frame.
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATION
Side airbag on rear seat backrest Nut Tightening torque 6.5 Nm NOTE: Perform the steps on the left and right side. - Attach the seat cover (1) in arrow direction.
- Feed in cable (5) and attach in all holders.
- Insert connector (4) in the connector housing (1), until the locks (3) audibly engage.
- Install the cable tie (2).
- Engage connector housing (1) in the holder.
- Variant with seat heating:
Connect connectors (6) and lock.

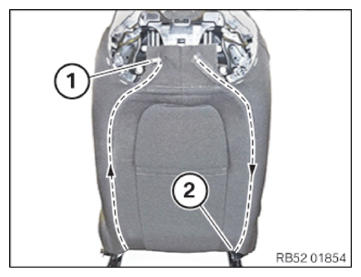

- Open zipper (1) in the arrow direction.
- Open zipper (2) in the arrow direction.
