REP-TAT-P-5218-01 Remove side airbag from front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Remove driver's side FRONT SEAT and/orpassenger's side FRONT SEAT.
- Remove left or right front seat INNER COVER
- Remove the left or right front seat OUTER COVER for backrest adjustment.
- Remove the STEERING LEVER for backrest adjustment.
- Remove the SEAT HEIGHT ADJUSTMENT LEVER
- Remove the front seat OUTER COVER
- Remove trim for BACKREST RELEASE
- Remove the front seat backrest REAR PANEL
- Remove the TRIM at the bottom of the aperture.
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS on handling airbag system components/gas generators
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS on handling components with gas generators.

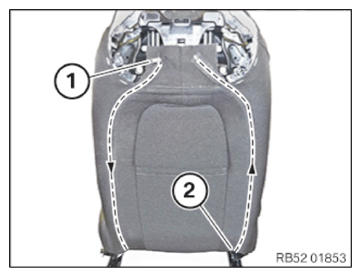

- Open zipper (1) in the arrow direction.
- Open zipper (2) in the arrow direction.
NOTE:
Perform the steps on the left and right side.
- Release seat cover (1) and fold to the side.
- Loosen nuts (1).
- Carefully take out side airbag (1) downwards out of cover pocket (2) and set it down.
- Release the connector (1) from the holder.
- Release the cable tie (2).
- Release locks (3) and take out the connector (4).
- Release cable (5) from all holders and set aside with side airbag.
- Variant with seat heating:
Unlock plug connection (6) and disconnect.
Feed out relative cables.
