Removing and installing/replacing front left or right safety belt (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.

Failure to observe correct procedures can deploy the airbag and cause injuries.

Preliminary work needed:

Disconnect cable from BATTERY GROUND LEAD.
Remove rear TRIM PANEL .

Removal:

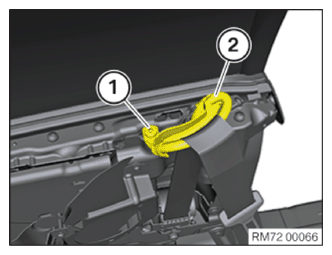

Remove screw (1).

Remove end lining (2) outwards.

Courtesy of BMW OF NORTH AMERICA, INC.

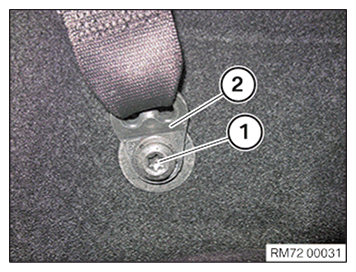

Remove screw (1).

Take off the seat belt guide loop (2) with seat belt strap.

Courtesy of BMW OF NORTH AMERICA, INC.

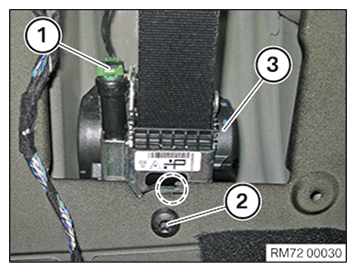

Unlock and disconnect the connector (1).

Remove screw (2).

Remove the seat belt retractor (3) from the guide.

Remove safety belt.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit the seat belt retractor.

NOTE: Seat belt retractor unit (3) is coded against incorrect installation.

Replace screw (2).

Tighten screw (2).

Tightening torque 72 11 1AZ .

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Take off the seat belt guide loop (2) with seat belt strap.

replace screw (1).

Tighten screw (1).

Tightening torque 72 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount end lining (2).

NOTE: End lining (2) is encoded to prevent incorrect assembly.

replace screw (1).

Tighten screw (1).

Tightening torque 72 11 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install REAR TRIM PANEL .
Connect BATTERY GROUND LEAD.
