51 31... Window glass removal with wire pull handle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 150 267

WARNING: Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems (risk of injury).

IMPORTANT:

Always wear safety goggles and protective gloves for your own safety.

Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).

Follow the vehicle-specific repair instructions!

Protect inner and outer working area (body, trim panels, cables etc.) against damage.

Depending on the area of application, a SEPARATING CORD can also be used as an alternative to wire.

Using the separating cord prevents any damage to the body.

Do not pull the separating cord over any sharp edges (risk of tearing)!

Used tool:

Use SUCTION LIFTER (51 3 010) to lift out the window glass.

Always keep both suction cups dry and clean to ensure optimum adhesion on the windshield.

Secure window glass (if necessary with adhesive tape) against falling out.

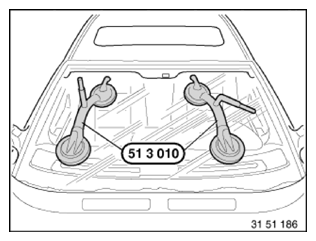

Fig 1: Lifting Out Window Glass Using Suction Cups (51 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Pulling cutting wire into vehicle:

Grip wire with pliers
(If access is difficult: using wire starter 2 150 267 , feed wire through adhesive bead.)
Wire end (1) must be bent towards window glass.
Heat wire end (1) and use it to pierce adhesive bead (2).
Pull approximately half of the wire into the passenger compartment

Fig 2: Pulling Cutting Wire Into Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When using the separating cord, always pull it in using the wire starter 2 150 267 .

Using wire starter:

Bend wire end approx. 10 mm and insert in notched tip.

Pierce wire starter with uniform pressure through adhesive bead, wire end (bent part) must be positioned on window glass.

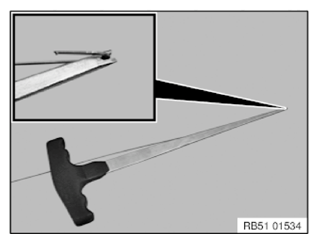

Fig 3: Bending Wire End And Notched Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Attach wire pull handles:

Feed in cutting wire (1) in cutting handle (2) and clamping element (3) as illustrated.

Move back cutting handle (2) over clamping element (3) and trap wire end (4).

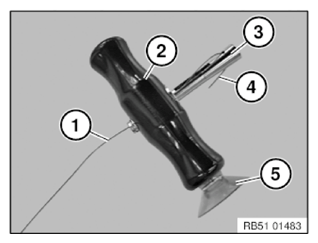

Fig 4: Attaching Wire Pull Handles

Courtesy of BMW OF NORTH AMERICA, INC.

Injury hazard!

Wire end (4) must not protrude out of cutting handle (2).

Cutting handle (2) can be secured with suction cup (5) to the vehicle window or body during each of the work operations. This prevents damage to the paint.

Fit second wire pull handle to other wire end.

Perform repair work with the aid of a second person.

Cutting wire (4) must be guided in cutting direction at an angle that is as acute as possible (>45°) to adhesive bead (1).

Cut through adhesive bead (1) by pulling cutting handle (2) and at the same time providing counter support with cutting handle (3).

Pull back cutting wire (4) with cutting handle (3) and make sure that cutting wire (4) is always held under tension.

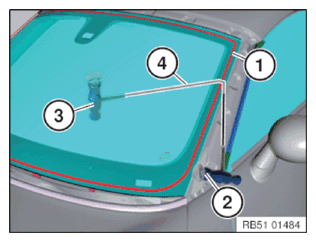

Fig 5: Cutting Through Adhesive Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through remaining adhesive bead in the same way.
