51 45 075 Removing and installing/replacing support for instrument panel (Version 2)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SUPPORT FOR INSTRUMENT PANEL .

Removal:

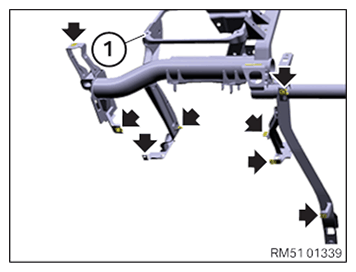

Remove metal clamps in the marked areas on the support of the instrument panel (1).

Fig 1: Locating Instrument Panel Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

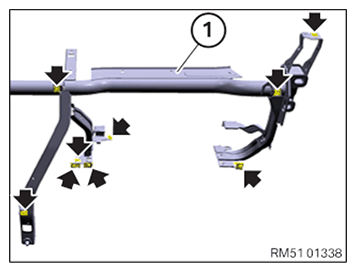

Remove metal clamps in the marked areas on the support of the instrument panel (1).

Fig 2: Locating Instrument Panel Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install metal clamps in the marked areas on the support of the instrument panel (1).

Fig 3: Locating Instrument Panel Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Install metal clamps in the marked areas on the support of the instrument panel (1).

Fig 4: Locating Instrument Panel Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
