51 23... Removing/installing ball sockets with clip

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Injury hazard! When installed, the gas pressurized shock absorber is under preload. Minimize preload as much as possible before removing.

IMPORTANT: Never lift off ball socket with engaged clamp.

Version A:

Push on clamp in direction of groove with screwdriver
Lift off ball socket from ball hub
Slide clamp back
Fit ball socket on ball pivot and snap into place using force

Fig 1: Lifting Off Ball Socket From Ball Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pack grease into two opposite positions in socket. The grease spreads all round in the ball socket after installation on the ball hub.

Version B:

IMPORTANT: Risk of damage!
If you are not careful, retaining spring (2) may be bent to such an extent that the entire drive spindle will have to be replaced.

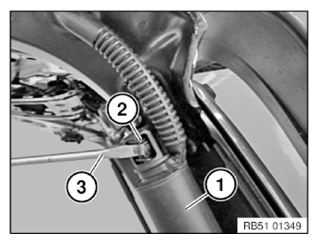

Fig 2: Pulling Out Retaining Spring With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Press drive spindle (1) against ball hub in order to relieve strain on retaining spring (2) at ball hub.

Pull out retaining spring (2) approx. 2-3 mm with screwdriver (3).

Detach spindle foot.

WARNING: Observe warning notices on the damper.

Electrical spindle drive for trunk lid is under mechanical spring load!

The component must be secured against falling down.

Attention!

Risk of damage!

Do not press on spindle drive at an angle or twisted.

Installation note:

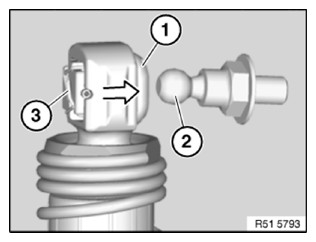

Press ball socket (1) onto ball hub (2) until retaining spring (3) engages correctly (clicking sound).

Fig 3: Pressing Ball Socket Onto Ball Hub Until Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

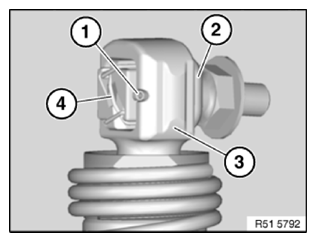

IMPORTANT: If retaining spring (4) is damaged!

Release pin (1).

Remove spindle drive (3).

Remove ball socket (2).

Remove retaining spring (4) and replace if necessary.

Fig 4: Spindle Drive, Ball Socket And Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.
