51 23 211 Removing and installing/replacing cable for front engine compartment locks (in engine compartment)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove both engine compartment lid catches. See REMOVING RIGHT ENGINE COMPARTMENT LID LOCK and REMOVING LEFT ENGINE COMPARTMENT LID LOCK .

REMOVAL:

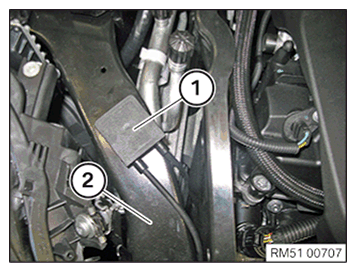

Unclip deflection (1) from lock support (2).

Fig 1: Lock Support And Deflection

Courtesy of BMW OF NORTH AMERICA, INC.

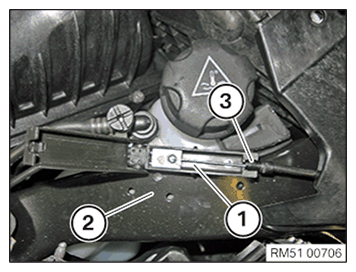

Unclip coupling (1) from lock support (2).

Open coupling (1) and disengage cable (3).

Release cable with coupling (1) from retaining clips and feed out.

Fig 2: Lock Support, Coupling And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Feed in cable with coupling (1) and attach in retaining clips.

Clip in coupling (1) into lock support (2).

Attach cable (3) and close coupling (1).

Fig 3: Lock Support, Coupling And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip coupling (1) from lock support (2).

Open coupling (1) and disengage cable (3).

Release cable with coupling (1) from retaining clips and feed out.

Fig 4: Lock Support, Coupling And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out function check with engine compartment lid open.
