51 21... Removing window channel strip with special tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Open side window completely.

Front door:

Insert special tool 00 9 324 at front (at A-pillar)

in window cavity (1) (TOP label pointing upwards). Rear door:

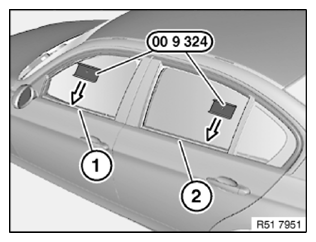

Fig 1: Inserting Special Tool (00 9 324) At Front (A-Pillar) In Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

Fig 2: Inserting Special Tool (00 9 324) At Rear (C-Pillar) In Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

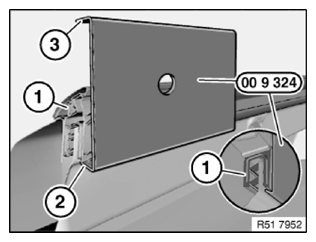

Special tool 00 9 324 must be correctly guided under window cavity cover strip (1).

2 Short leg, bottom

3 Long leg, top (TOP)

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage!
Raise window channel strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

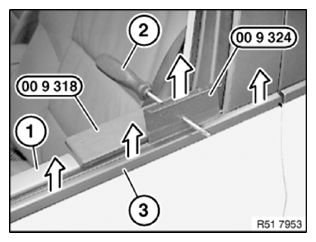

Fig 3: Raising Window Channel Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 00 9 318 on door trim panel (1).

Slide screwdriver (2) via the special tool 00 9 324 and lever window cavity cover strip (3) upwards no more than 5 mm.

Guide special tools 00 9 324 and 00 9 318 towards front/rear and lever out the window cavity cover strip (3).
