51 21 125 Removing and installing/replacing support for left or right outer door handle without lock barrel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove OUTER HANDLE
Remove SOUND INSULATION

REMOVAL:

Release screw (1).

Slide support (2) forwards and thread out inwards.

Fig 1: Sliding Support

G11649171

Courtesy of BMW OF NORTH AMERICA, INC.

Thread support (1) out from door.

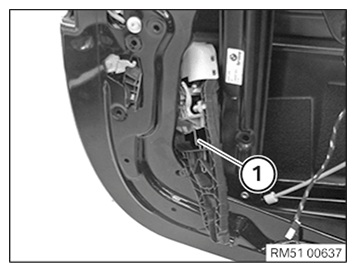

Fig 2: Locating Support

G11649173

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable (1) and remove support.

Fig 3: Locating Cable

G11649174

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Attach cable (1).

Fig 4: Locating Cable

G11649174

Courtesy of BMW OF NORTH AMERICA, INC.

Thread support (1) into door.

Fig 5: Locating Support

G11649173

Courtesy of BMW OF NORTH AMERICA, INC.

Thread support (2) backwards into mounting.

Tighten down screw (1).

Tightening torque 51 21 6AZ .

Fig 6: Support And Screw

G11649177

Courtesy of BMW OF NORTH AMERICA, INC.
