51 71... Remove and install/replace left or right lower front brake air duct (Cooper JCW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove FRONT BUMPER COVER

Right side only:

Release WASHER FLUID RESERVOIR for washer system

Removal:

Undo expander rivet or screws (1).

Remove screw (2).

Feed out air duct (3) from guide (4) and remove.

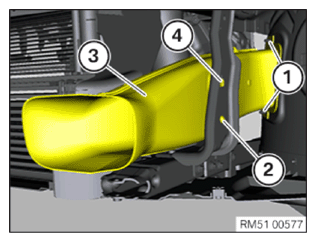

Fig 1: Feeding Out Air Duct From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in air duct (3) with guide (4) into holder.

Secure air duct (3) with screw (2).

Secure expanding rivet or screws (1).

Fig 2: Feeding Air Duct With Guide Into Holder

Courtesy of BMW OF NORTH AMERICA, INC.
