51 12... Removing and installing/replacing insert in bumper cover (JCW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

- Remove REAR BUMPER TRIM .

Removal:

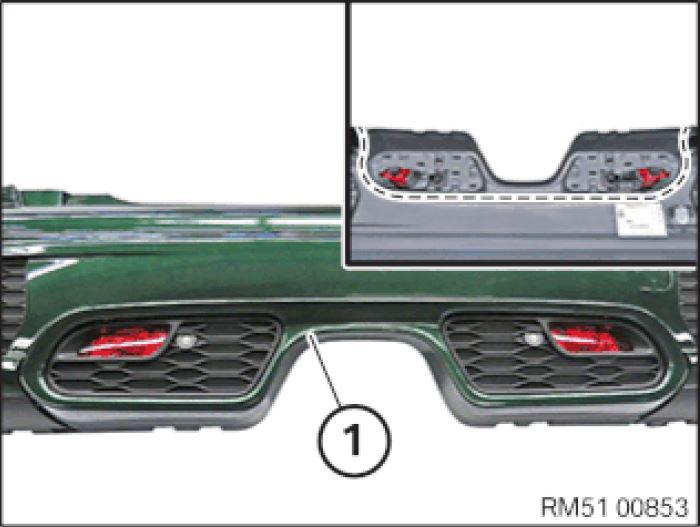

Release insert (1) along the dashed line from the detents and remove.

Fig 1: Locating Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Swap over ORNAMENTAL GRILLE .

Remount REAR FOG LIGHTS .

Installation:

NOTE: Detents must not be damaged or missing.

Engage insert (1) along the dashed line into the detents.

Fig 2: Locating Inserts

Courtesy of BMW OF NORTH AMERICA, INC.
