51 12 156 Removing and installing rear bumper panel: Notes

Necessary preliminary tasks:

Cooper:

• Remove WHEEL HOUSING PLATES  from bumper panel
• Remove REAR LIGHTS

Cooper S:

• See NECESSARY PRELIMINARY TASKS (COOPER S) .

Cooper JCW:

• See NECESSARY PRELIMINARY TASKS (COOPER JCW)

Removal:

Release left and right screws (1).

Fig 1: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

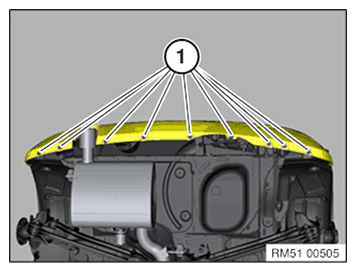

Release screws (1).

Fig 2: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

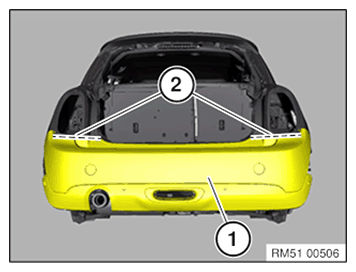

Release bumper panel (1) from latch mechanisms in marked areas (2).

Disconnect plug connections for rear fog light/ultrasonic sensor.

Remove bumper panel (1) with a second person helping.

Fig 3: Locating Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position bumper panel (1) with the aid of a second person.

Connect plug connections for rear fog light/ultrasonic sensor.

Clip in bumper panel (1) in latch mechanisms in marked areas (2).

Fig 4: Locating Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Fig 5: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left and right.

Tightening torque 51 12 3AZ .

Fig 6: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.
