51 11.. Removing and installing/replacing mounting for fog light on front left or right (Cooper JCW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove FRONT BUMPER COVER

Removal:

Disengage mounting for fog light (1) from detents and remove.

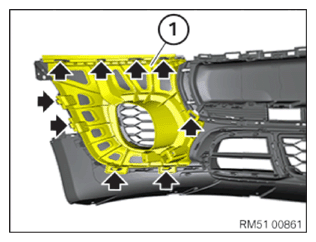

Fig 1: Locating Fog Light Mounting From Detents

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Detents on mounting for fog light (1) must not be damaged or missing.

Position mounting for fog light (1) and engage in the detents.

Fig 2: Locating Fog Light Mounting From Detents

Courtesy of BMW OF NORTH AMERICA, INC.
