51 11 781 Replacing the front deformation element on the bottom right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SUPPORT FOR THE FRONT BOTTOM BUMPER PANEL
Release FLUID FUEL TANK FOR WINDSCREEN WASHER SYSTEM

REMOVAL:

Only Cooper S:

Release expanding rivet (1).

Release screw (2).

Feed out air duct (3) from guide (4) and remove.

Fig 1: Expanding Rivet, Air Duct, Guide And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 to 3).

Remove deformation element (4).

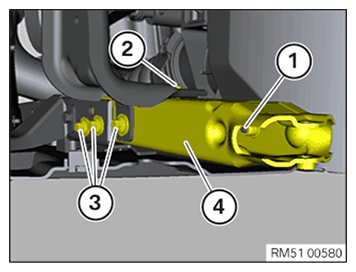

Fig 2: Deformation Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Insert deformation element (4).

Tighten screws (1 to 3).

Screw	Tightening torque
(1)	51 11 9AZ
(2)	51 11 4AZ
(3)	51 11 5AZ

Fig 3: Deformation Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only Cooper S:

Feed in air duct (3) with guide (4) into holder.

Secure air duct (3) with screw (2) and expanding rivet (1).

Fig 4: Expanding Rivet, Air Duct, Guide And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
