Removing and installing (replacing) console for windshield wiper system complete with electric motor (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove WINDSHIELD PANEL COVER .

Removal:

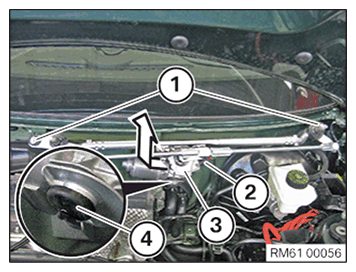

Unlock and disconnect connector (2).

Unscrew the screws (1).

Feed out console for windshield wiper system (3) from retainer (4) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in console for windshield wiper system (3) into retainer (4) in arrow direction.

Tighten down screws (1).

Tightening torque 61 61 2AZ .

Connect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install WINDSHIELD PANEL COVER .
