Replacing and installing (replacing) the solar rain/driving-light sensor and condensation sensor (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Observe the INFORMATION on protection from electrostatic discharge.

Preliminary work needed:

Remove either the INTERIOR REARVIEW MIRROR .

Removal:

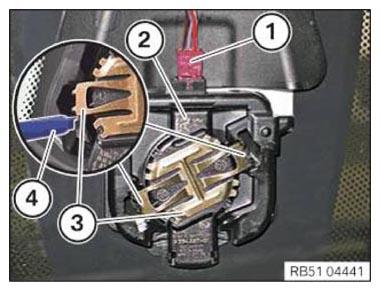

Disconnect connector (1).

Unlock rain/light/solar and condensation sensor (2) at metal spring (3).

For this purpose, press both sides of the metal spring (3), insert the screwdriver (4) on the side and raise the detent.

Attention!

Risk of damage!

After loosening lock, wait approx. 30 min. at 20°C for silicone surface to relax.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the rain/light/solar and condensation sensor (1) slowly from holder (2) in arrow direction.

NOTE: When replacing the windshield, only remount the rain/light/solar and condensation sensor (1) after disassembly of the windshield.
Detach the rain/light/solar and condensation sensor (1) slowly while observing from outside the release of the silicone surface.
The silicone surface must evenly loosen from the windshield, if required, detach slower.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage!

The silicone-coated surface (1) and the PCB (2) on the rain/light/solar and condensation sensor must not be touched or damaged!

Replace damaged gel pad.

When replacing the windshield, immediately install the rain/light/solar and condensation sensor into the new windshield following removal.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage!

The area (1) on the windshield must not be touched or damaged!

The area (1) may have remnants of the separation oil of the rain/light/solar and condensation sensor that are easy to remove. This does not indicate that the rain/light/solar and condensation sensor is damaged.

Remove all separating oil residue within and outside of the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement:

Carefully clean the windshield at the contact area (1) with the rain/light/solar and condensation sensor!

All silicone and separation oil residue must be removed!

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cover (1) from new rain/light/solar and condensation sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

The silicone-coated surface (1) and the PCB (2) on the rain/light/solar and condensation sensor must not be touched or damaged!

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attention!

Risk of damage!

The silicone-coated surface on the rain/light/solar and condensation sensor must not be touched or damaged.

Feed the rain/light/solar and condensation sensor (1) into holder (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect connector (1) only after the rain/light/solar and condensation sensor has been locked.

Press on the rain/light/solar and condensation sensor (2) at the metal spring (3) in a center position.

To lock, consecutively press down both sheet metal tabs (4) on each side.

Connect connector (1) with the rain/light/solar and condensation sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Visible shades (1 and 2) do not have any air pockets, but show the optical element of the sensor.

Visible shades (1 and 2) do not represent any functional limitation.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Initialization and coding are performed automatically by BDC control unit.

Required follow-up work:

Install either the INTERIOR REARVIEW MIRROR .
