Replacing the battery ground lead (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
,
Comply with NOTES for disconnecting and connecting the vehicle battery and
INSTRUCTIONS on intelligent battery sensor (IBS).
Follow the NOTES for disconnecting and connecting the vehicle battery.
Comply with INSTRUCTIONS on intelligent battery sensor (IBS).
Observe and follow SAFETY INSTRUCTIONS for handling vehicle battery.
,
Comply with NOTES for disconnecting and connecting the vehicle battery and
INSTRUCTIONS on intelligent battery sensor (IBS).
Follow the NOTES for disconnecting and connecting the vehicle battery.
Comply with INSTRUCTIONS on intelligent battery sensor (IBS).
Preliminary work needed:
- Remove the BATTERY COVER .
Removal:
Release expanding rivet.
Remove the mounting for the gasket (1).
Loosen nut (1).
Unlock and disconnect connector (3).
Remove battery ground lead (2) from the vehicle battery.

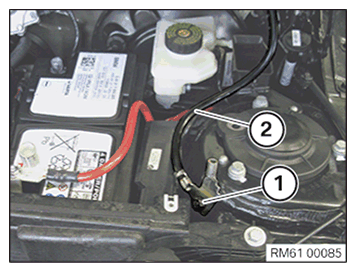

Slacken nut (1).
Remove the battery ground lead (2).
Installation:
Join battery ground lead (2).
Tighten nut (1).
Tightening torque 61 21 2AZ .
Join battery ground lead (2) on the vehicle battery.
Tighten nut (1).
Tightening torque 61 21 1AZ .
Connect connector (3).
Join mounting for gasket (1) and secure with expanding rivet.
Required reworking:
- Install the BATTERY COVER .
