Removing and installing/replacing trunk cross member trim panel (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed :

Remove left BACKREST for rear seat and/or right BACKREST
Remove left TRUNK WHEEL ARCH TRIM and right TRUNK WHEEL ARCH PANEL .

Removal:

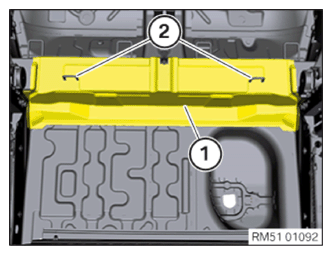

Take out and remove the trim panel (1) over the lashing points (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Mount trim panel (1) and install over the lashing points (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install left BACKREST or for rear seat and/or right BACKREST
Install left TRUNK WHEEL ARCH TRIM and right TRUNK WHEEL ARCH PANEL .
