Removing and installing or replacing inside door opener in left or right front door (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove front DOOR TRIM PANEL .
- Remove BOWDEN CABLE for door opener.
NOTE:
Door opener is welded to door trim panel only on initial installation. During second installation, the door opener is secured by means of lock washers. If necessary, release lock washers instead of welding spots.
Removal:

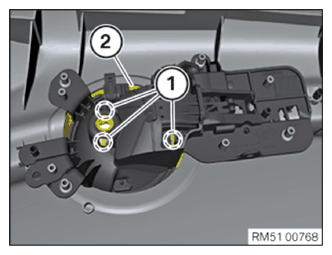

Release catches (1).
Remove cover (2) from outside.

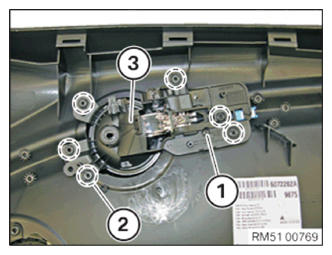

Remove screw (1).
Drill out welding spots (2) on door opener (3) by means of weld spot drill bit.
Remove door opener (3).
Installation:

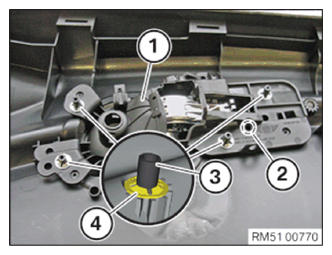

Insert new door opener (1) and retain it in position by means of screw (2).
Secure all welding pins (3) by means of lock washers (4).
Check door opener (1) is positioned correctly.
Insert the trim (2) from outside and clip into detents (1).
Required follow-up work:
- Attach BOWDEN CABLE for door opener.
- Install front DOOR TRIM PANEL .
