Removing and installing/replacing Bowden cable for inner door opener on left or right front door (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove front door TRIM PANEL .

Removal:

Detach Bowden cable housing (2) towards the rear/top of lock (2) - the Bowden cable automatically feeds out during this.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

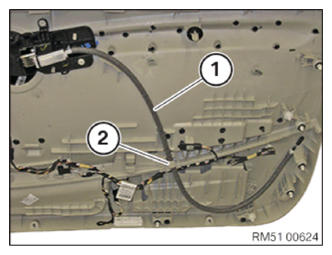

Make sure cable (1) is in correct position in holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

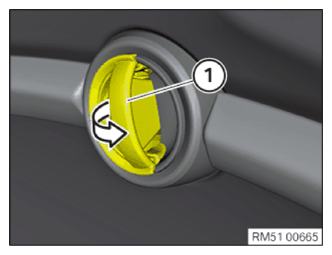

To install the Bowden cable, press inner door handle (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

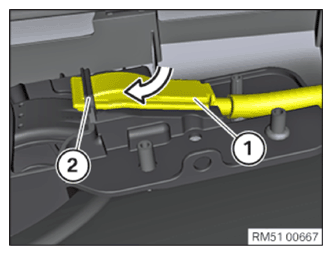

Engage Bowden cable housing (1) to the front/bottom below lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install front door TRIM PANEL .
