Removing and installing/replacing center armrest (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

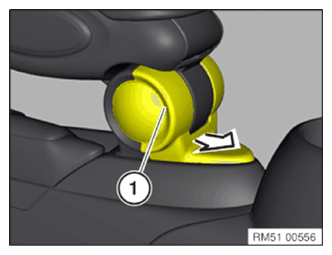

Detach cover (1).

G13797389

Courtesy of BMW OF NORTH AMERICA, INC.

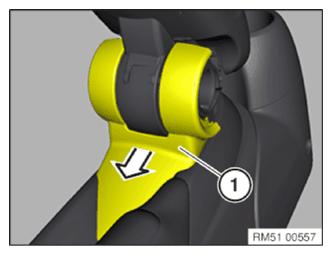

Detach cover (1).

G13797390

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Bluetooth mobile phone preparation:

Remove rear CUP HOLDER .

Unlock plug connection (1) on left and right and disconnect.

G13797391

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove center armrest (2) upwards.

G13797392

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on equipment):

Remount BASE PLATE .

Installation:

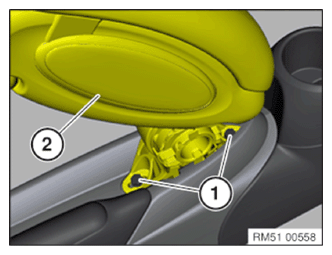

Position center armrest (2).

Connect associated plug connections depending on equipment.

Tighten down screws (1).

Tightening torque 51 16 4AZ .

G13797393

Courtesy of BMW OF NORTH AMERICA, INC.

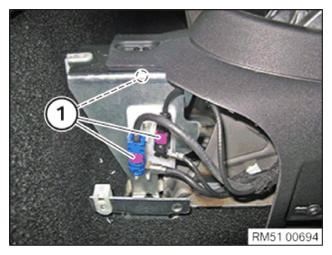

Version with Bluetooth mobile phone preparation:

Connect plug connections (1) on left and right.

Install rear CUP HOLDER .

G13797394

Courtesy of BMW OF NORTH AMERICA, INC.

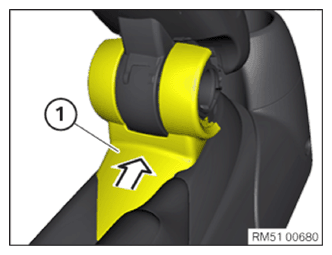

Engage cover (1).

G13797395

Courtesy of BMW OF NORTH AMERICA, INC.

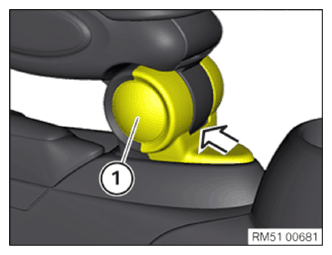

Engage cover (1).

G13797396

Courtesy of BMW OF NORTH AMERICA, INC.
