Removing and installing/replacing rear cup holder (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

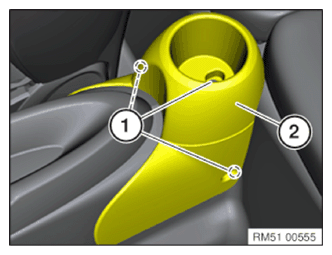

Release screws/expanding rivets (1) and feed out the cup holder (2) upwards.

G13797387Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in the cup holder (2) from the top and secure with screws/expanding rivets (1).

G13797388Courtesy of BMW OF NORTH AMERICA, INC.
