REP-TAT-P-5112-25 Replacing the diffuser
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Follow-up work
- Install rear BUMPER COVER
- Install the diffuser

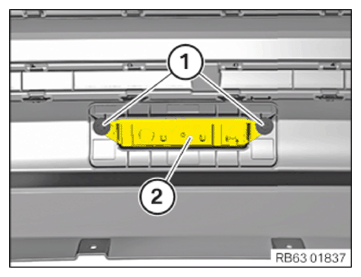

Removing the rear fog light
- Loosen screws (1) .
- Remove rear fog light (2) .
Installing the rear fog light
- Position rear fog light (2) in the bumper.
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Rear fog light to bumper cover | |
|---|---|
| Screw | |
| Tightening torque | |
| 1.5 Nm | |
