Replacing base plate for number/license plate (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Only use the vehicle-specific number plate baseplate.
The installation of other license plate baseplates is not permissible.
See: LICENSE PLATE .
The license plate must be mounted exactly on the number plate baseplate.
If a number plate baseplate is not offered for the corresponding national-market version, the license plate must be mounted directly on the bumper using a drilling template
Incorrect assembly leads to a malfunction of the sensors of the driver assist systems.
NOTE:

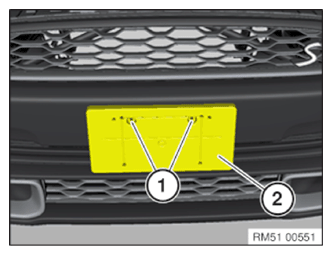

Schematic diagram shown on example of F56 MINI Cooper S national-market version USA.
There may be differences in detail in the case of other versions.
There may be differences in detail in the case of other versions.
Removal:
Unscrew the screws (1).
Remove holder (2) towards front.
Installation:
Position support (2).
Tighten down screws (1).
NOTE:
For initial installation on new bumper cover, pre-drill marks on bumper.
