Removing and installing/replacing front MINI plate (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 322
IMPORTANT:
Comply with the NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.
NOTE:
The MINI plaque is damaged during disassembly and must be replaced.
Removal:

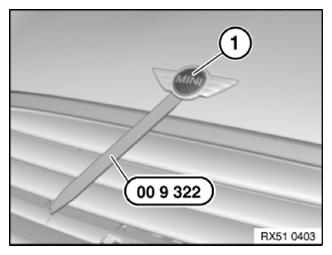

Heat MINI plaque (1) with hot air blower and carefully lever out with special tool 00 9 322.
Installation:

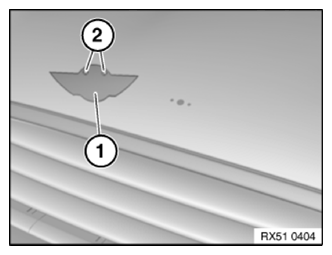

Detach the liner* from the adhesive tape (1) and place the MINI plaque over the guide pines (2) on the front compartment lid and press down firmly.
* Liner is the protective film on a new MINI plaque.
