Removing and installing/replacing deformation element for front right bumper (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove support for top front BUMPER COVER .
- Release WASHER FLUID RESERVOIR for washer system.
Removal:

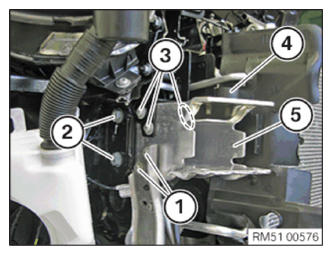

Remove screws (1 to 4).
Pull out deformation element (5).
Installation:
Insert deformation element (5).
TIGHTENING TORQUE SPECIFICATION
| Screw | Tightening torque |
|---|---|
| (1) | 51 11 4AZ . |
| (2) | 51 11 6AZ . |
| (3) | 51 11 4AZ . |
| (4) | 51 11 9AZ . |
Required follow-up work:
- Secure WASHER FLUID RESERVOIR for washer system.
- Install front top support for BUMPER COVER .
