Removing and installing front bumper cover (Cooper Convertible): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Paint damage.
Mechanical action can lead to paint damage.
Paint damage.
Mechanical action can lead to paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: GAP DIMENSIONS, BODY
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: GAP DIMENSIONS, BODY
Removal:

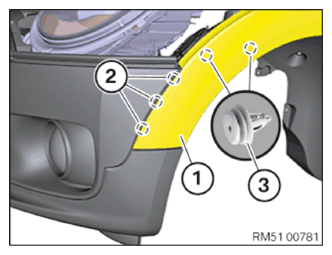

Release trim (1) from detents (2) and clips (3).
NOTE:
Carry out work on the right side in the same way as for the left side illustrated here.
Unscrew the screws (1).
Only F55, F56 and F57:

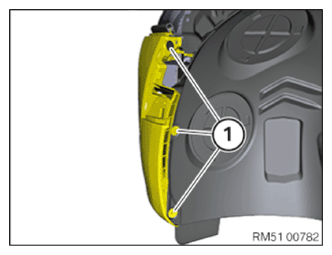

Unscrew the screws (1).
Only F54:

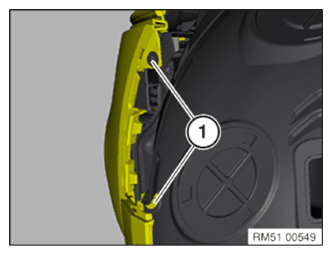

Unscrew the screws (1).

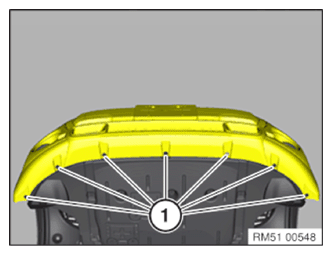

Unscrew the screws (1).

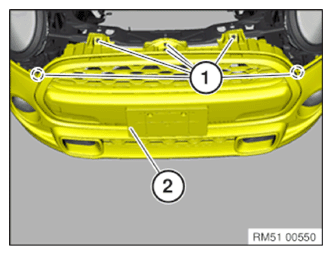

Pull bumper cover (2) slightly towards the front with aid of a support person.
Unlock and disconnect all plug connections depending on equipment specification.
Remove bumper cover (2) towards the front with the aid of a support person.
Installation:
Position bumper cover (2) with the aid of a second person.
Connect all plug connections.
Tighten down screws (1).
Tightening torque 51 11 1AZ .
Only F54:
Tighten down screws (1).
Only F55, F56 and F57:
Tighten down screws (1).
Tighten down screws (1).
Fasten trim (1) on detents (2) and clips (3).
NOTE:
Carry out work on the right side in the same way as for the left side illustrated here.
