Precision-turning both front brake blades on both sides (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Always precision-turn both sides of both brake discs on one axle.
Maximum machining dimension per friction ring side is 0.8 mm!
Minimum brake disc thickness (MIN TH)
Brake discs of M models (Compound brake discs) must not be machined!
Only one brake pad set may be used up on brake discs which have been lathe-turned to minimum thickness (MIN TH).
Maximum machining dimension per friction ring side is 0.8 mm!
Minimum brake disc thickness (MIN TH)
Brake discs of M models (Compound brake discs) must not be machined!
Only one brake pad set may be used up on brake discs which have been lathe-turned to minimum thickness (MIN TH).
Mobile brake disc lathe:
IMPORTANT:
Only BMW-approved brake disc lathes may be used!
In the case of mobile brake disc lathes, the brake caliper and the brake anchor plate must be removed.
The brake discs remain on the vehicle.
Please refer to the equipment manufacturer's operating instructions for the exact procedure.

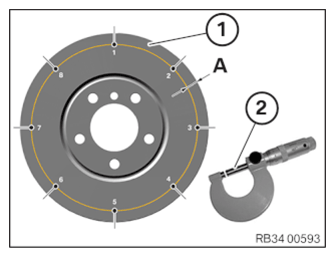

After precision turning the brake discs, the difference in thickness must be measured with a micrometer (2) at 8 different points (1) approx. 10 mm (dimension A) from the outer edge of the disc!
Permissible difference in thickness: See: FRONT BRAKES and REAR BRAKES Technical Data.
