Removing and installing (replacing) the bottom sensor line for contactless trunk opening replace

Attention!

Observe the INFORMATION  on protection from electrostatic discharge.

Preliminary work needed:

• Remove REAR BUMPER PANEL .

Removal:

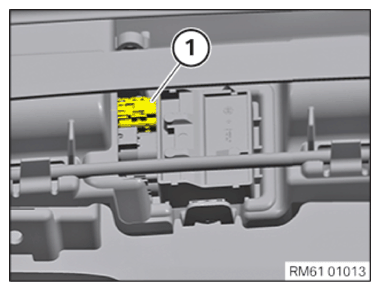

Unlock and disconnect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

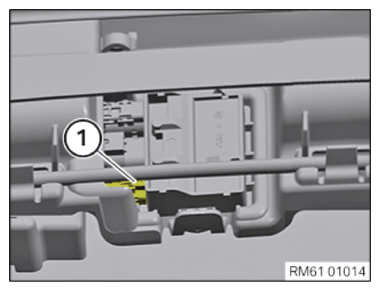

Unclip sensor line (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

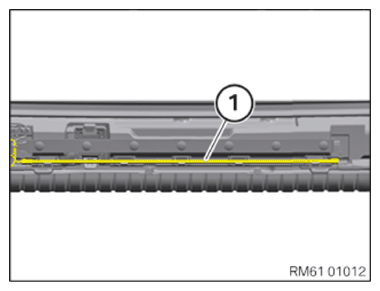

Clip in sensor line (1) from above.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR BUMPER PANEL .
