Remove and install/replace ring antenna

Preliminary work needed:

• Remove lower part of STEERING COLUMN SHROUD .

Removal:

If required, unlock and disconnect connector.

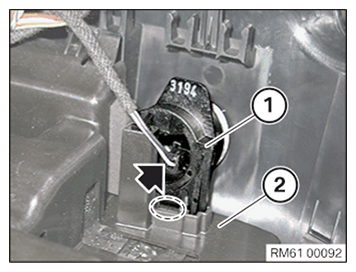

Unlock detent and pull ring antenna (1) upwards out of steering column shroud (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join ring antenna (1) in steering column shroud (2).

If required, connect connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install lower section STEERING COLUMN SHROUD .
