Replacing rear cross member (AWD)

Preliminary work needed:

• Remove CROSS MEMBER .

Removal:

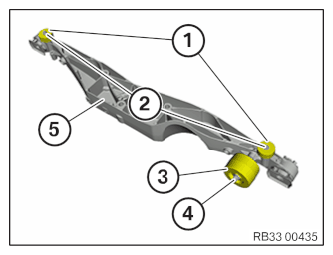

Loosen screws (2).

Remove additional weights (1) from rear axle support (5).

Release screw (4).

Remove hydraulic vibration absorber (3) from rear axle support (5).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position additional weights (1) on rear axle support (5).

Part  : Replace screws (2).

Tighten down screws (2).

Tightening torque 33 31 7AZ .

Position hydraulic vibration absorber (3) on rear axle support (5).

Part  : Replace screw (4).

Tighten screw (4).

Tightening torque 33 31 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CROSS MEMBER .
