Removing and installing rear cross-member (AWD)

Special tools required:

• 23 4 150

Preliminary work needed:

• Remove EXHAUST SYSTEM .

Removal:

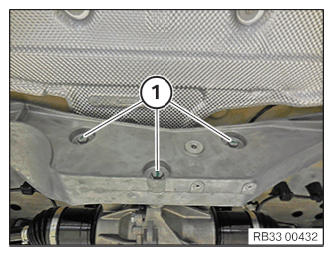

Loosen screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Support rear axle differential (1) with workshop jack and special tool 23 4 150.

Secure rear axle differential against falling out with luggage strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Remove vibration absorber (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1) from the cross member on the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Remove cross member (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position cross member on the rear axle differential.

Tighten down screws (1).

Tightening torque 33 31 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on the left and right of the cross member (2).

Tightening torque 33 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position vibration absorber (2) on the cross member.

Tighten screw (1).

Tightening torque 33 31 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Release luggage strap (2).

Lower and place aside special tools 23 4 150 and workshop jack.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (2).

Tighten down screws (1).

Tightening torque 33 31 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install EXHAUST SYSTEM .
