Replace rubber mounts for the rear axle differential/rear axle support (AWD)

Special tools required:

23 4 150
33 0 181
33 0 183
33 0 184
33 0 185
2 406 775

Preliminary work needed:

Remove complete EXHAUST SYSTEM.
Remove the right TANK COVER .
Remove and tie back PROP SHAFT on rear axle differential.

Removal:

Loosen screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1).

Loosen cable (2) from control unit bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Support rear axle differential (1) with workshop jack and special tool 23 4 150.

Secure rear axle differential against falling out with luggage strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) on cross member (2) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lower rear axle differential (1) until the rubber mount becomes accessible on the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber mount with special tools 33 0 181, 33 0 183, 33 0 184 and 33 0 185.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

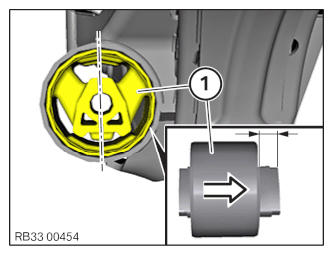

IMPORTANT: Coat bearing bush in rear axle support and new rubber mount (1) with Circo Light (refer to BMW Group parts sales).
Make sure that the larger protruding part of the rubber mount (1) is pointing towards the rear axle differential (arrow).

Align rubber mount (1) with the rear axle support as shown in the graphic.

Courtesy of BMW OF NORTH AMERICA, INC.

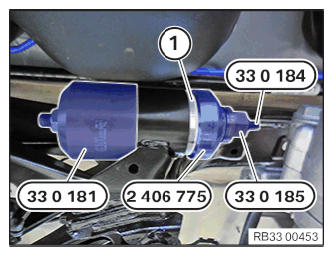

Install rubber mount (1) with special tools 33 0 181, 330 184, 330 185 and 2 406 775 up to the stop in the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Lift rear axle differential (1) and align with rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Hand-tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on the cross member (2) on the left and right.

Tightening torque 33 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 17 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable (2) on control unit bracket.

Connect connector (1) to control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Release luggage strap (2).

Lower and place aside special tools 23 4 150 and workshop jack.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (2).

Tighten down screws (1).

Tightening torque 33 31 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install PROP SHAFT on the rear axle differential.
Install right TANK COVER .
Completely install the EXHAUST SYSTEM .
