Replacing the rear axle differential ventilation line (AWD)

Special tools required:

• 2 407 851
• 23 4 150

Preliminary work needed:

• Remove complete EXHAUST SYSTEM.
• Remove the right TANK COVER .
• Remove heat shields.

Removal:

In order to protect the prop shaft, install special tool 2 407 851 between the front and rear prop shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Tie the prop shaft must be tied away without fail  or supported with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1).

Loosen cable (2) from control unit bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Support rear axle differential (1) with workshop jack and special tool 23 4 150.

Secure the rear axle differential (1) with luggage strap (2) to special tool 23 4 150.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) of rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screws (1) on left and right of cross member (2) (right side identical).

Courtesy of BMW OF NORTH AMERICA, INC.

Lower rear axle differential (1) by a maximum of 10 cm.

Courtesy of BMW OF NORTH AMERICA, INC.

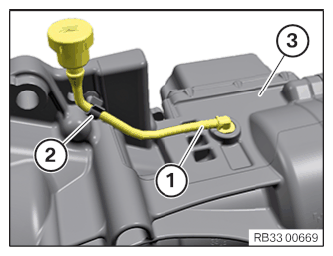

Release ventilation line (1) from holder (2).

Release ventilation line (1) out of rear axle differential (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position ventilation line (1) on rear axle differential (3) and secure.

Secure ventilation line (1) on holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Raise rear axle differential (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) of rear axle differential hand force.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left and right of cross member (2) (right side identical).

Tightening torque 33 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 17 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove luggage strap (2).

Lower universal jack using special tool 23 4 150 and put away.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable (2) on control unit bracket.

Connect connector (1) to control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (2).

Tighten down screws (1).

Tightening torque 33 31 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 26 11 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 2 407 851.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install heat shields.
• Install right TANK COVER .
• Completely install the EXHAUST SYSTEM .
