Removing And Installing Flap For Fuel Filler Neck (Cooper Clubman F54)

Removal:

Open flap.

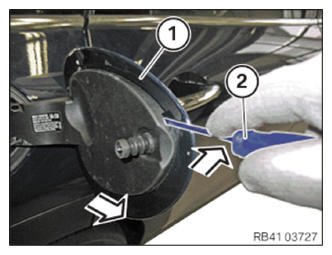

Put a small screwdriver (2) into the recess.

Unlock detent by tipping screwdriver (2) in arrow direction.

Detach flap (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide flap onto hinge until detent audibly engages.

Detent on hinge must not be damaged.

If the detent is damaged, replace the COVER HOUSING .
