Replacing the mechanism for glass slide/tilt sunroof panel (Cooper)

Special tools required:

• 2 298 505
• 64 1 020

Preliminary work needed:

• Remove PANORAMA GLASS ROOF COMPLETELY .
• Remove front GLASS SLIDE/TILT SUNROOF PANEL .

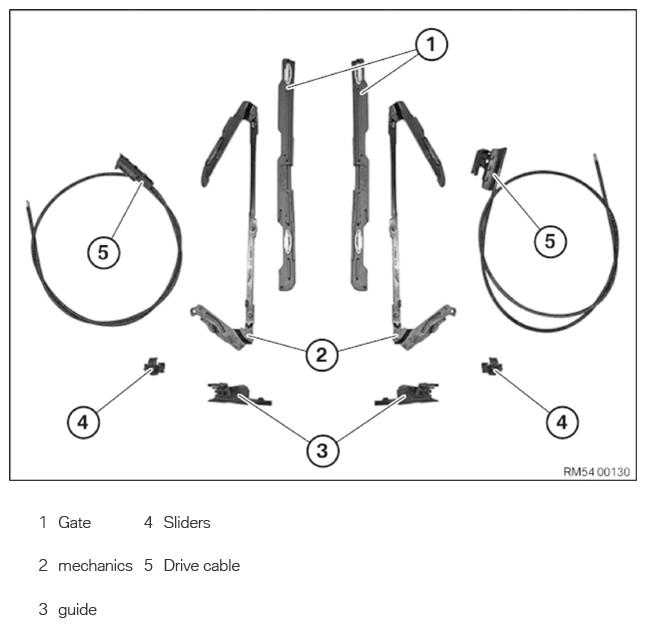

Separate components of mechanism repair kit:

Courtesy of BMW OF NORTH AMERICA, INC.

Removal and installation of the parts (1 to 4) is described below.

Drive cable (5) is described in the following service information: REMOVING AND INSTALLING/REPLACING DRIVE CABLE FOR GLASS SLIDE/TILT SUNROOF PANEL .

Removal:

Shift mechanism manually until guide (1) can be accessed.

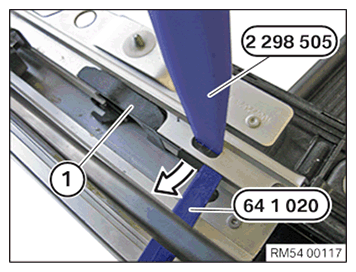

Unclip guide (1) with special tool 2 298 505 and 64 1 020 in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

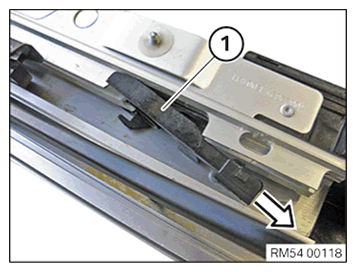

Feed out guide (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

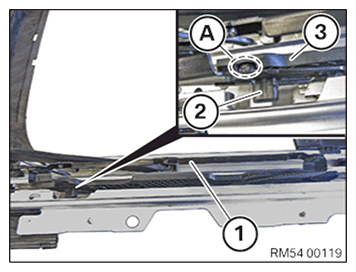

Shift mechanism (1) manually until slider (2) becomes visible via cutout.

Detach mechanism (1) upwards from rail (3) in area (A).

Courtesy of BMW OF NORTH AMERICA, INC.

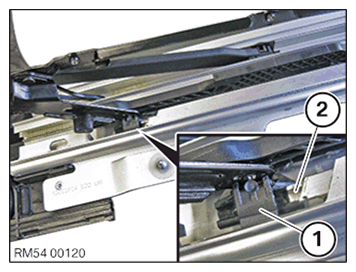

Feed out guide (1) from rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.

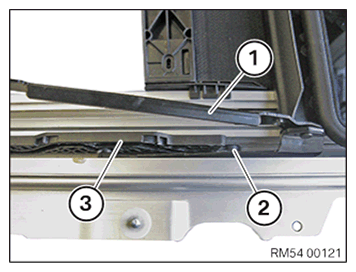

Slide mechanism (1) to the rear until slider (2) is fed out from rail (3).

Courtesy of BMW OF NORTH AMERICA, INC.

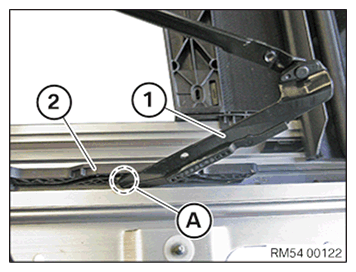

Tilt mechanism (1) upwards and feed out of rail (2) in area (A).

Courtesy of BMW OF NORTH AMERICA, INC.

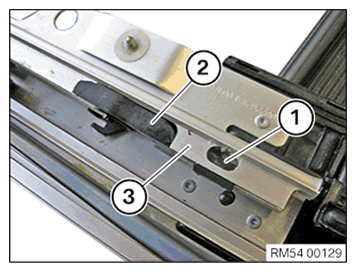

Fold gate (1) outwards until slider (2) is fed out of rail (3).

Feed out gate (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Insert gate (1) from above.

When feeding in gate (1), sliders (2) must feed in correctly into rail (3).

Courtesy of BMW OF NORTH AMERICA, INC.

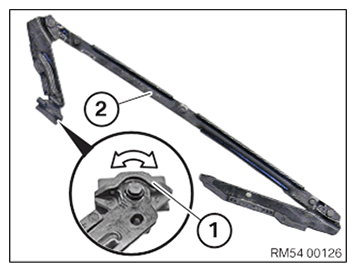

Attach new slider (1) to new mechanism (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in mechanism (1) into rail (2) in area (A).

Courtesy of BMW OF NORTH AMERICA, INC.

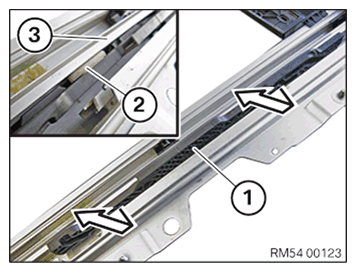

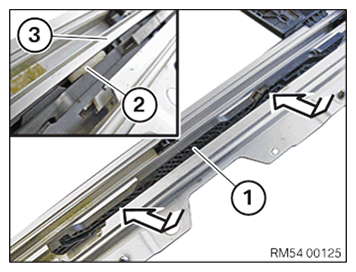

Slide mechanism (1) forwards and at the same time feed in slider (2) into rail (3).

Courtesy of BMW OF NORTH AMERICA, INC.

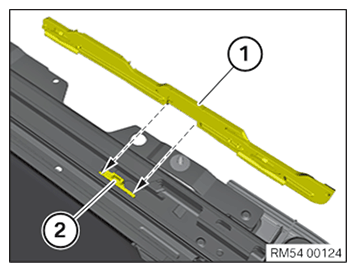

Feed in guide (1) into rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.

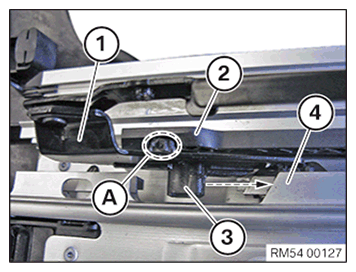

Insert mechanism (1) into gate (2) in area (A).

Shift mechanism (1) manually until slider (3) feeds in into rail (4).

Courtesy of BMW OF NORTH AMERICA, INC.

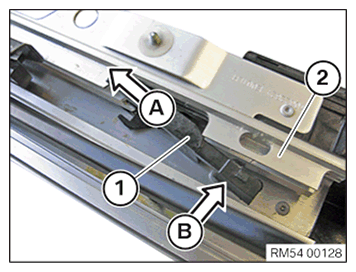

If necessary, shift mechanism manually until the opening for the guide (1) can be accessed.

Insert guide (1).

1. firstly feed in into rail (2) at the rear.
2. then clip in into rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Read and comply with NOTES  on greasing.

Check smooth and noise-free running of kinematics.

Run a functional check.

Required follow-up work:

• Install COMPLETE PANORAMA GLASS ROOF .
• Install the front GLASS SLIDE/TILT SUNROOF PANEL .
