Removing and installing/replacing complete panorama glass roof (Cooper)

Special tools required:

2 354 941

Courtesy of BMW OF NORTH AMERICA, INC.

Preliminary work needed:

Lower ROOFLINER .

Removal:

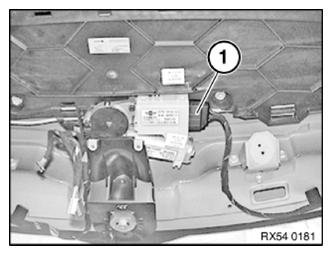

Unlock and disconnect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

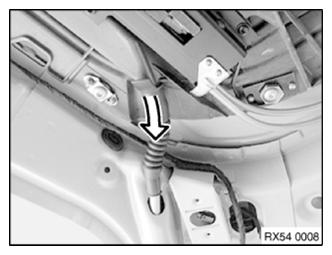

Detach front left/right water drain hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

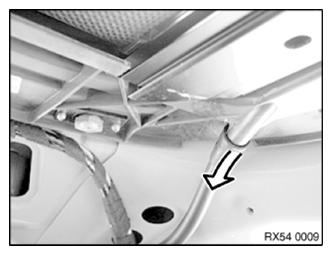

Detach rear left/right water drain hoses.

Courtesy of BMW OF NORTH AMERICA, INC.

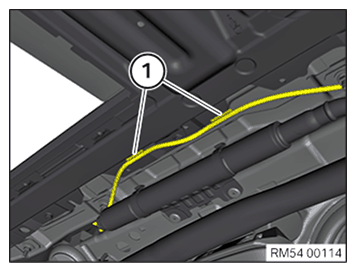

Release cable clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Two persons are required to help in removing the panorama glass roof.

Overview of panorama glass roof:

Courtesy of BMW OF NORTH AMERICA, INC.

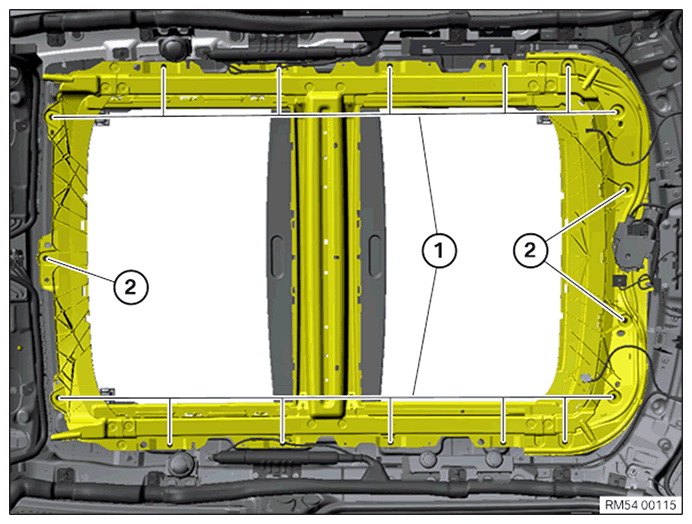

Unscrew the screws (1).
An assistant must secure the panorama glass roof to prevent it falling.

IMPORTANT: Do not damage any surrounding components when removing the panorama glass roof.

Unscrew the screws (2).
Carefully lower the panorama glass roof and remove from vehicle towards rear through tailgate opening.

Installation:

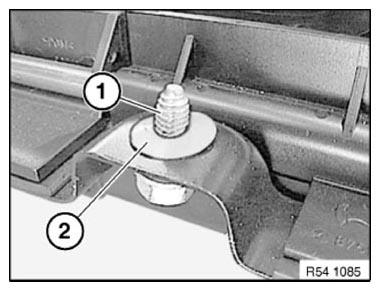

NOTE: To stop creakings, secure all screws (1) prior to installation with plastic washers (2).
If the standard screws can no longer grip, use "repair screws" (larger threads).

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Two persons are required to help in installing the panorama glass roof.

Panorama glass roof:

Courtesy of BMW OF NORTH AMERICA, INC.

Insert panorama glass roof and loosely tighten screws (1 and 2).

The panorama glass roof must still be able to shift in the body aperture.

IMPORTANT: Do not crush any cables when installing the panorama glass roof.

Panorama glass roof:

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On account of leaks, the panorama glass roof must be exactly aligned to body aperture.

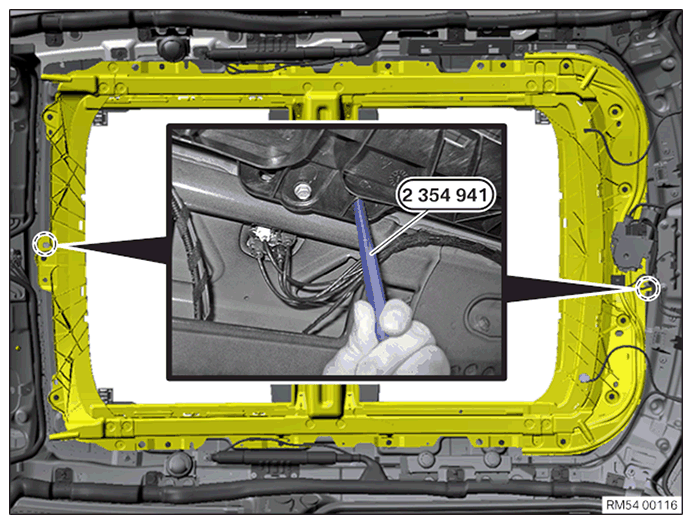

Insert special tool 2 354 941 into the center bores in panorama glass roof and body fully.

Panorama glass roof glides into place.

Tighten the screws.

Tightening torque 54 12 5AZ .

Attach cable clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach rear left/right water drain hoses.

NOTE: Make sure water drain hoses are correctly seated.
Water ingress into passenger compartment is possible if water drain hoses are not correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach front left/right water drain hoses.

NOTE: Make sure water drain hoses are correctly seated.
Water ingress into passenger compartment is possible if water drain hoses are not correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Fit the HEADLINING .
INITIALIZE the panorama glass roof.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
