REP-TAT-P-5413-02 Installing the seal for the panorama glass roof frame
Further information is available.
NOTE:
TECHNICAL INFORMATION
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For additional information see: NOTES for bonded seals
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For additional information see: NOTES for bonded seals
- Clean bonding surface.

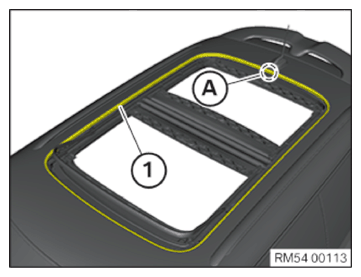

- Glue the seal (1) on to the contact edge (A) beginning without tension (compression) on the body aperture.
The upper edge of the seal must be flush with the roof outer skin.
- Glue the seal (1) on in sections.
- Create a sealing joint on the contact edge (A).
Follow-up work
- Install rear GLASS SLIDE/TILT SUNROOF PANEL
- Install the front GLASS SLIDE/TILT SUNROOF PANEL
- Check the setting of the PANORAMA GLASS ROOF
- Adjust front GLASS SLIDE/TILT SUNROOF PANEL
- INITIALIZE panorama glass roof
