Sunroof - Repair -- Cooper (F54)
>>
54 13 SOFTTOP Operation, Fully Automatic
>>
Replacing gasket on rear glass slide/tilt sunroof panel (Cooper)
>>
REP-TAT-P-5413-02 Install rear glass slide/tilt sunroof panel
REP-TAT-P-5413-02 Install rear glass slide/tilt sunroof panel

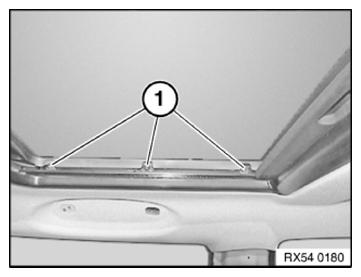

Carefully insert glass slide/tilt sunroof panel from above.
Screw in the left and right new screws (1), do not tighten yet.
Parts:
screw
