Detaching and attaching/replacing seal on left split door

Preliminary work needed:

Remove TRIM PANEL for rear window frame at left split door

Removal:

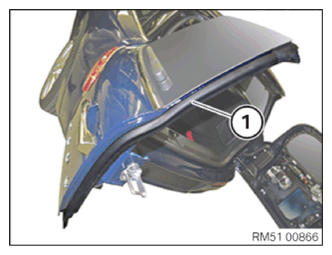

NOTE: The seal (1) is secured at the top in the area of the rear window using double-sided adhesive tape.

Release seal (1) from adhesive tape and detach towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach seal (1) and glue on in area of rear window.

NOTE: Observe the NOTES on attaching components using double-sided adhesive tape.
Make sure that the seal is seated correctly on the tailgate trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install TRIM PANEL for rear window frame at left split door
